🔂 CDC in PostgreSQL: how does pglogical works?
This article will go through an experimental repo to simulate Change Data Capture (CDC) from PostgreSQL to PostgreSQL using pglogical extension.
There is another version of this post for native Logical Replication in PostgreSQL that I would suggest check beforehand:
This repo has been adapted with some improvements to handle some edge cases and enhance the replication process!
👨🏻💻 The environment
I’ve created a repo to help me speed up my testing.
👉 Github Repo: 🔃 Change Data Capture (CDC) using pglogical in PostgreSQL
In this context, I’ve enabled 2 PostgreSQL services with Docker to simulate CDC with a fake data generator I’ve adapted for this scenario.
With some simple commands, you can simulate a bunch of scenarios such as INSERT, DELETE, UPDATE, DROP, TRUNCATE.
Using Dbeaver or psql in your terminal can help you validate the changes afterwards.
By default, the repo will create the 2 PostgreSQL instances with everything you need.
For this to work, we need:
pglogical extension.
A Publisher node (Source)
A Subscriber node (Target)
A Replication set for the tables to replication.
A Subscription to the Publisher.
Tables with primary keys.
PostgreSQL config with
wal_level = ‘logical’
Also, this repo has some adjustments as backup, since these actions are not executed by default and would break the replication process:
Scripts will add/remove columns to tables on source and target databases.
Scripts will add new tables to the replication and to both databses.
Scripts will remove tables from the replication set and drop tables on both databases.
🔗 Starting the replication
To get started, you can run:
make build
NUM_RECORDS=10000 make runThis will spin up both PostgreSQL services, and create source tables with 10K rows of fake data. Then, you run:

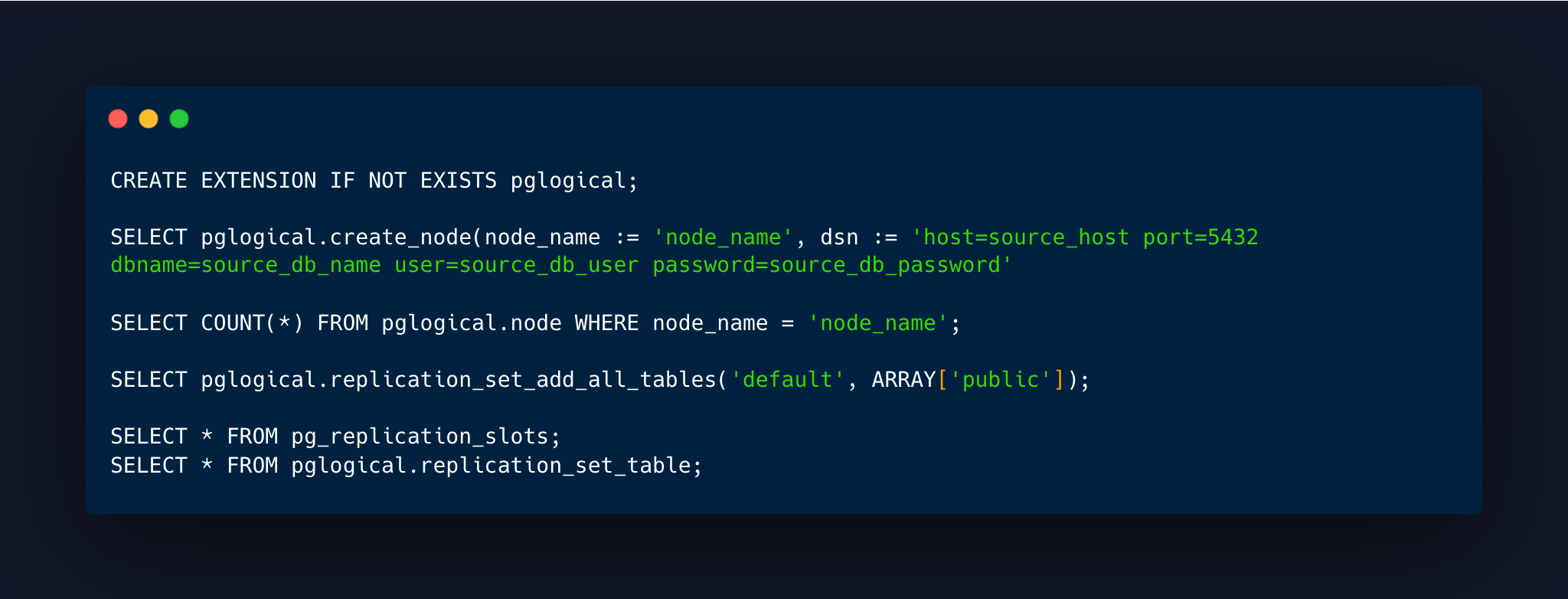

make cdc-pglogicalSource (a.k.a provider/publisher):
Create pglogical extension.
Create a publisher node.
Add tables to the replication set.
By default, it will create a replication slot.
Target (a.k.a subscriber):
Create pglogical extension.
Create a subscription to the publisher.
🔂 Sending changes
You can start sending changes, these commands will apply INSERT, DELETE, TRUNCATE or UPDATE on a single random table. You can decide on how many rows you apply the changes:
NUM_RECORDS=5 make insert-data
NUM_RECORDS=5 make delete-data
NUM_RECORDS=5 make update-data
make truncateThis is the same as doing (e.g. products table):
👀 Try breaking the replication!
If it wasn’t for the improvements to the scripts, all these upcoming actions would break the pglogical replication.

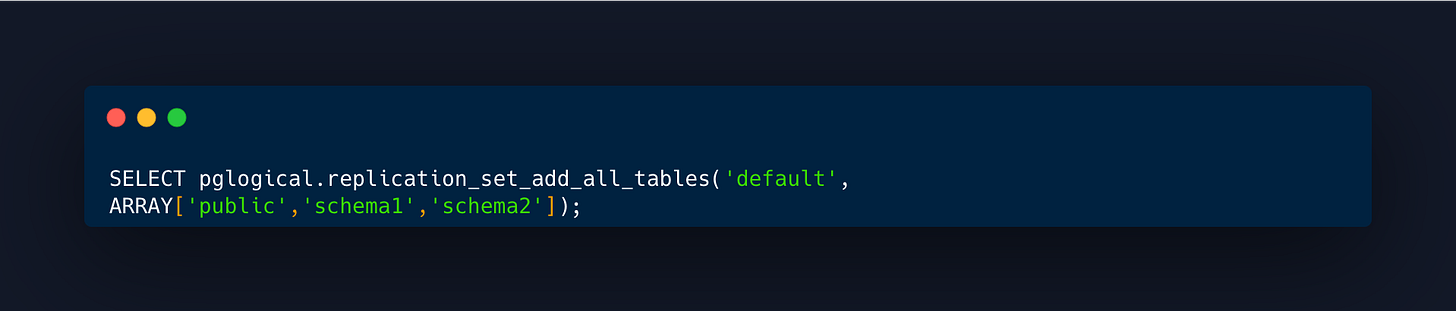

Good thing about to pglogical compared to native PostgreSQL replication is that replication sets can cover entire schemas.
If you add a new table for an already included schema, it will add it automatically, but you will still need to create it on the target database.
If you need to drop a table, you need to remove it from the replication and also drop on the target database.
This edge cases are covered by the scripts:

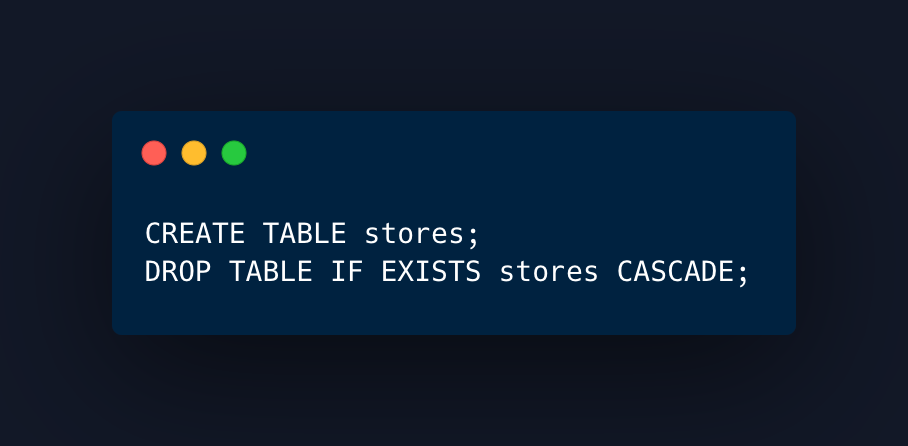

You can test this scenario by running these commands in the repo. You will notice tables are created and drop in both databases:
make create-table
make drop-table Translates as (e.g. products table):
Schema changes is another scenario, you can also test it:
make add-column
make drop-columnTranslates as (e.g. products table):
The enhanced scripts are applying changes in both databases, thing that wouldn’t happen by default.
As always, you can run these commands to validate all changes:
📝 Conclusions & Notes
Be default,
pglogicalwill copy an initial snapshot when enabled.You need PRIMARY KEYs on the TABLES you want to replicate. Not VIEWS.
This feature doesn’t replicate sequences, DDLs or schemas.
Schema changes are ignored. Adding or dropping columns will do nothing.
If you have set
pglogical.replication_set_add_all_tables('default', ARRAY['public']);and runCREATE TABLE, you need to also add it on the target database, otherwise it will break the replication.The previous point works similarly to the
DROP TABLE, you need to remove it from the replication set and then drop it on both sides.
